Manhattan Super Speed USB-C to 7-in-1 Docking Station Aluminum - GrayCV275

was EGP3,999.00 Special Price EGP2,799.00
Availability: Out of stock
SKU
CV275

From: USB-C
Ports: HDMI, Mini DP, VGA, 3 USB 3.0, USB-C PD, RJ45 , SD/MicroSD and 3.5 mm
Cable Lenght: 20 CM

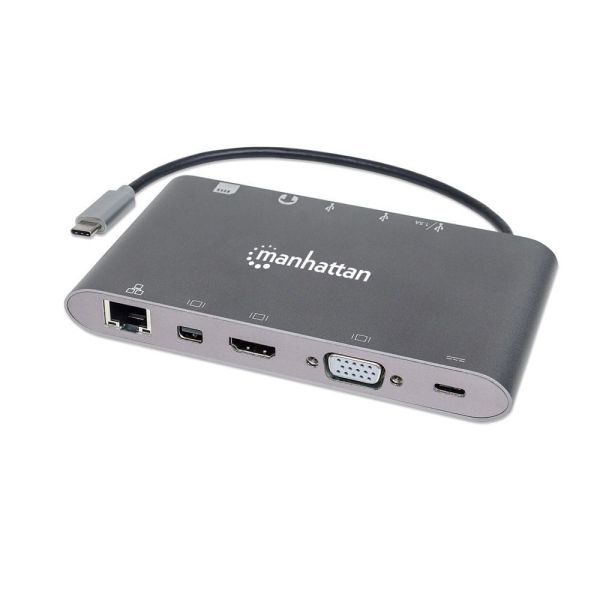

Manhattan Super Speed USB-C to 7-in-1 Docking Station

Easily connect a USB Type-C device to an HDMI, Mini DP or VGA display, USB peripherals, Network and SD memory card.

The Manhattan SuperSpeed USB-C Docking Station establishes a fast, simple and convenient link between newer USB Type-C-equipped media sources (computers, tablets, Smartphones, etc.) and an existing HDMI/Mini DP/VGA display (monitors, projectors, etc.), in either mirror- or extended-display mode. Create a mini-workstation by adding any USB 3.0 (and earlier) peripheral, such as a mouse, keyboard, hub, external memory device and more, with the integrated USB-A ports, Gigabit network connection, 3.5 mm Stereo and SD and Micro SD card slot, all while charging your device through the USB-C port.
The Manhattan USB 3.2 Gen 1 USB-C Docking Station is easy and quick to install. No complicated configuration or setup is required to enhance the functionality of your Type-C device. Its all-in-one design achieves a compact, integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and work spaces neat and orderly.

Multi-function docking station connects a USB Type-C device to an HDMI, Mini DP or VGA display, three USB 3.0 Type-A ports, a 10/100/1000 Mbps port, a 3.5 mm stereo port, a USB-C power port and an SD Card Reader

Delivers Ultra-High-Definition (UHD) 4K@30Hz video and audio over HDMI or Mini DP connection or HD 1080p video over VGA connection

Mirror or extended-display modes support video resolutions up to 1080p@60Hz or 3840x2160 at 30 Hz (4K) Full UHD; Mac only supports mirror mode

One Gigabit Ethernet (10/100/1000) port for faster downloads, media streaming and gaming

Three USB 3.0 Type-A ports to connect mice, keyboards or portable memory devices (and more) or to charge and sync a portable electronic device

USB-A SuperSpeed ports offer 5 Gbps data transmission speeds; BC1.2 port charges up to 7.5 W (5 V / 1.5 A)

Easy access to media and content management with read/write/copy Micro SD and SD slots; supports automatic card detection and data transfer speeds up to 90 Mbps

Supports USB (PD) function up to 60 W; requires an external PD charger – available from Manhattan

USB-C port provides 5 Gbps data transmission

3.5 mm jack for high-quality stereo sound; both mic (audio input) and headphone (audio output)

Aluminum housing makes this durable converter the perfect desktop or travel companion

Compatible with all USB-C DP-Alt-Mode-supported desktops, notebooks and tablets including Apple MacBook, Chromebook, Pixel and more

Compliant with DisplayPort 1.2 Alternate Mode (DP Alt Mode)

Plug and Play

Fully shielded to reduce EMI and other interference sources

Molded PVC boot and strain relief

More Information
Product Name Manhattan Super Speed USB-C to 7-in-1 Docking Station Aluminum - GrayCV275
Select From Category Laptop Accessories
Part Number 152808
Model Manhattan Super Speed USB-C to 7-in-1 Docking Station Aluminum - Gray
Brand Manhattan
color Gray
Cable Length 20 CM
Cable Type Type-C
Connectors' Material Aluminum
Features

Standards and Certifications
USB 3.2 Gen 1
HDMI
HDCP 1.4
CE
FCC
RoHS2
WEEE
General
Video Resolutions: 640 x 480, 800 x 600, 1024 x 768, 1920 x 1200, 1080p, 3840 x 2160p at 30 Hz, 4K
USB-A ports: 5 Gbps
Supported flash cards: SD / SDHC / SDXC / EXTREME SD / EXTREME II SD / EXTREME III SD / ULTRA SD / ULTRA II SD / ULTRA II SD P PLUS / SD-ULTRA-X / ULTRA SPEED SD / SD PRO / SD ELITE PRO / HS SD / MMC / MMC 4.0 / HS MMC / HS RS MMC / RS MMC / RS MMC 4.0 / MMC Mobile
Supported flash cards: SD, SDHC and SDXC; up to 128 GB
Transfer speed: up to 90 Mbps
34-AWG cable gauge
Bus powered
USB-C PD Charging Port: 60 W (20 V at 3 A)
USB-A Charging: 10 W (5 V at 2 A)
One BC 1.2 port: 7.5 W (5 V at 1.5 A)
Two ports share: 5 W (5 V at 1 A)
Mylar and aluminum shielding
Withstanding voltage: 300 VDC
Insulation resistance: 10 MΩ
Conductive resistance: 5 Ω
Connections
Input:
One USB Type-C 24-pin, male
Outputs:
One HDMI 19-pin, female
One Mini DisplayPort 20-pin female
One VGA 15-pin female
One 10/100/1000 Mbps RJ45, female
Three USB Type-A 4-pin, female
One SD memory slot
One Micro SD memory slot
One 3.5mm Stereo, female
One USB-C 24-pin, Power Delivery, female
Physical
Housing: 137 X 75 x 17 mm (5.4 x 3 x 0.7 in.)
Cable Length: 20 cm (8 in.)
Weight: 198 g (7 oz.)
Housing: Aluminum
Operating Environment
Operation Temperature: 0 – 45°C (32 – 113°F)
Storage Temperature: -10 – 70°C (14 – 158°F)
Humidity (noncondensing): 10 – 90%
System Requirements
Windows XP/Vista/7/8.1/10 or Linux or Mac 10.7.1 or above
Package Contents
SuperSpeed USB-C to Docking Station
Quick Instruction Guide
NOTE: Does not support simultaneous video output - only one video port can be used at a time (HDMI or Mini DisplayPort or VGA)

From USB-C
To HDMI, Mini DP, VGA, 3 USB 3.0, USB-C PD, RJ45 , SD/MicroSD and 3.5 mm
